The NEW 2450 Electric Trike Bike Specifications

Sobowo 2450 Electric Trike Bike Specifications

Model: Sobowo 2450 by Trike Bike, Electric Tricycle
Common Name: Sobowo 2450 Electric Trike Bike
SKU: TB-2450

Build Material
6061 T3 Aluminium Alloy

Motor Voltage: 36V
Motor: 36V 250W Bafang Front Hub Motor
Electronic Controller: Lishui Intelligent Brushless Controller
Battery Capacity: 36V 10Ah/360Wh Li-ion Battery
Battery Features: Locks to frame, capacity check gauge and USB charging outlet
Charger: AC240V, 2A Smart Charger
Typical charging time: 2-5 hours

Maximum Speeds
Road Setting: 0-25 km/h
Off-Road Setting: 0-25 km/h
Walk Mode: ~4.5 km/h

Off Road: Thumb Throttle
Speed Settings: 5
Range: +35 kms
Walk Mode: ~4.5 km/h

On Road: Pedal Assist
Speed Settings: 5
Range: +40 kms
Walk Mode: ~4.5 km/h

Tricycle Features
Brakes: Cable Operated Disc Brakes on all 3 wheels
Brake Lever: Alloy 4 finger, Promax Brake Levers with Power Cut-off and Parking Brake
Front Fork: MOZO Hydraulic Suspension Fork
Stem: Adjustable
Handlebar: Alloy – comfort series
Grips: Justtek ergonomic with palm support

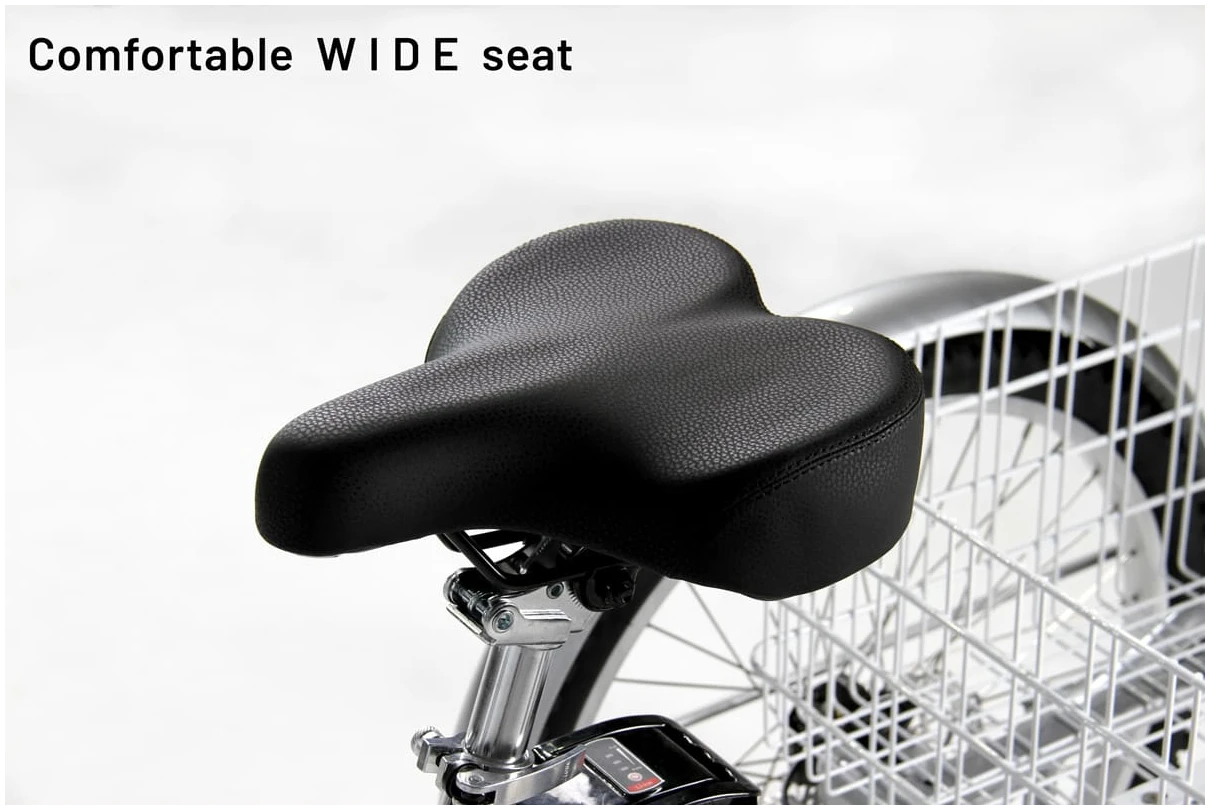

Seat: Velo 8020 comfort
Seat post: Promax Alloy, adjustable with forward tilt

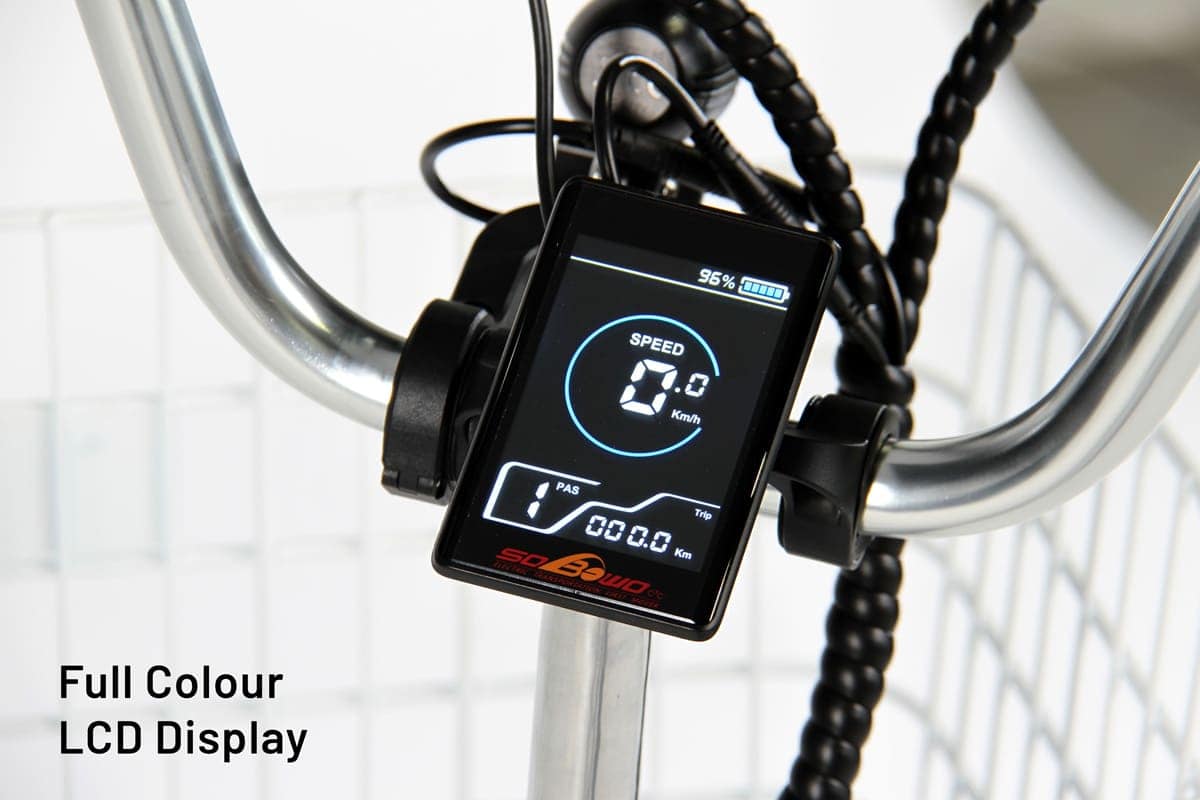

Multi Function Display: UKS2 LCD Colour Display with USB charger outlet
Operated through handlebar mounted keypad

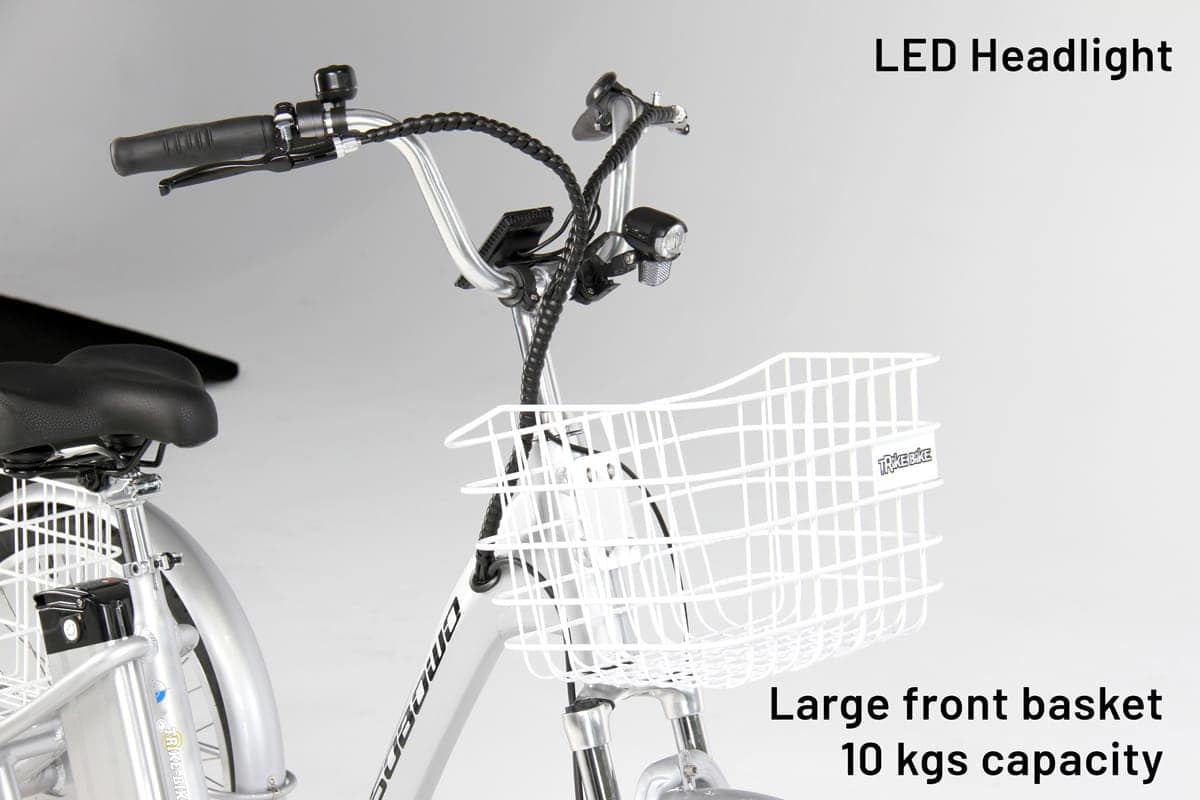

LED Headlight, LED taillight with brake function

Wheel Details
Front Rim: 24” x 2.0″

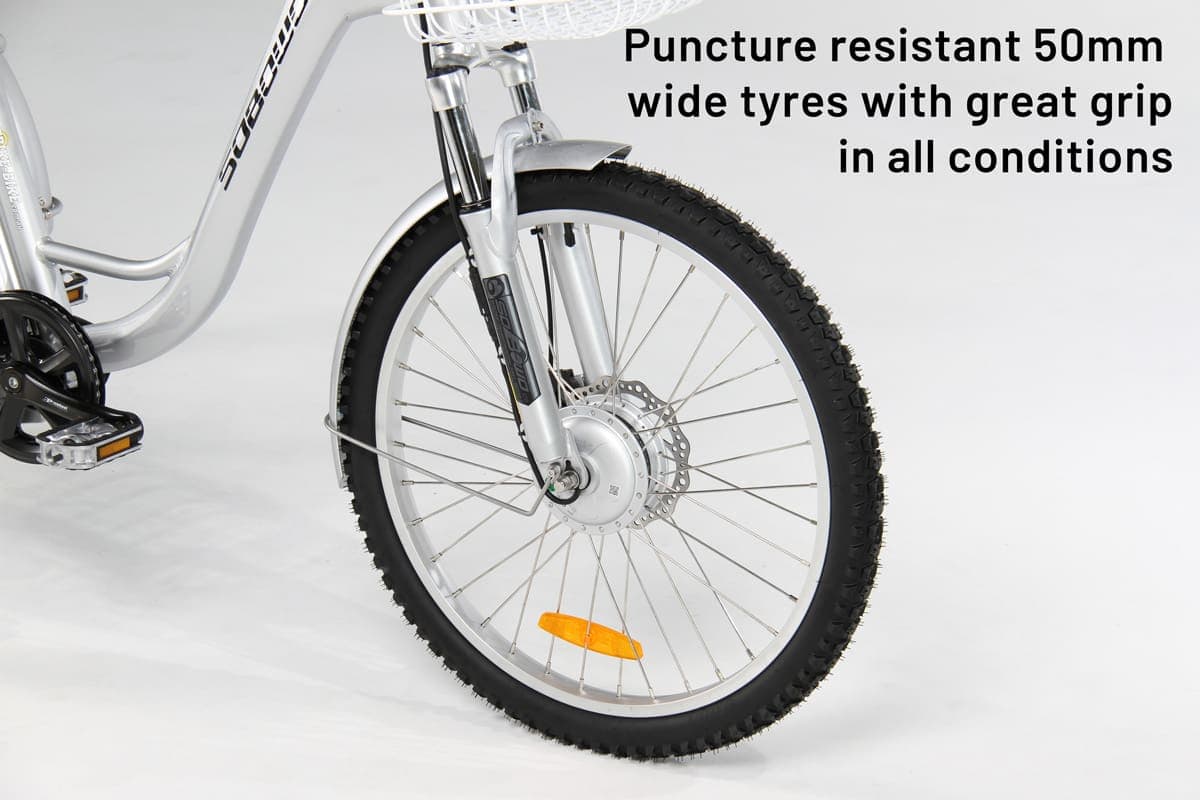

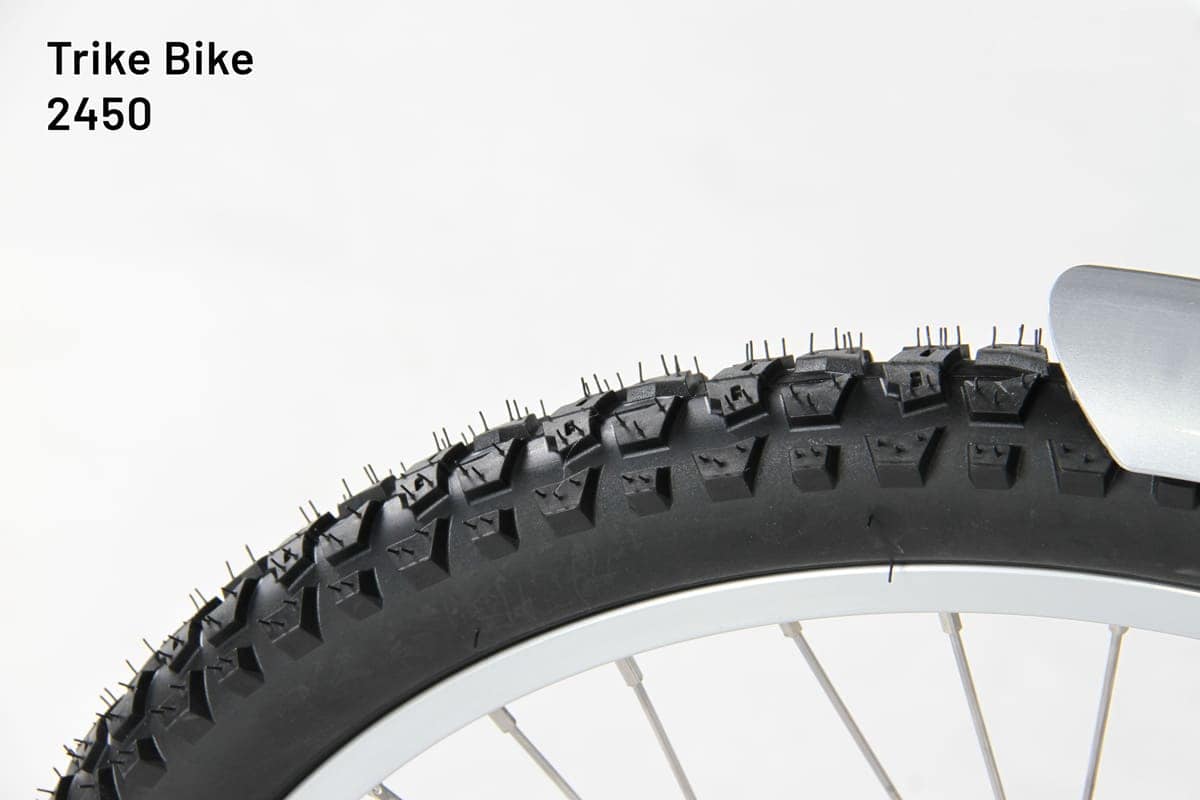

Front Tyre: Innova HV-5002 24”x 2.125” puncture resistant
Rear Rim: 24” x 2.0″
Rear Tyre: Innova HV-5002 24”x 2.125” puncture resistant
Rims: Alloy double wall
Hubs: Rear: Alloy, Front: Alloy
Spokes: #304 Stainless steel #12 Gauge
Mudguards: Font and rear wheels – full mudguards
Crankset: Alloy 42 teeth chain ring with double sided chain cover
Rear Sprocket: Shimano 18 teeth
Gears: Single Speed Shimano 18 teeth
Chain: KMC

Bottom Bracket
Sealed bearing bottom bracket with Rothwell aluminium cranks and Wellgo oversize pedals

Rear Axle
High strength, toughened steel rear axle 20mm Ø, 4 sealed bearings

#304 Stainless steel nuts, bolts, washers

White reflector on front, red reflector on rear and yellow reflectors on all wheels, bell fitted. LED Headlight, LED taillight with brake function, fully complies with Australian regulations.

Recommended Rider Weight: up to 150 kgs
Load Capacity Front Basket: 10 kgs (fitted to frame – no effect on steering)

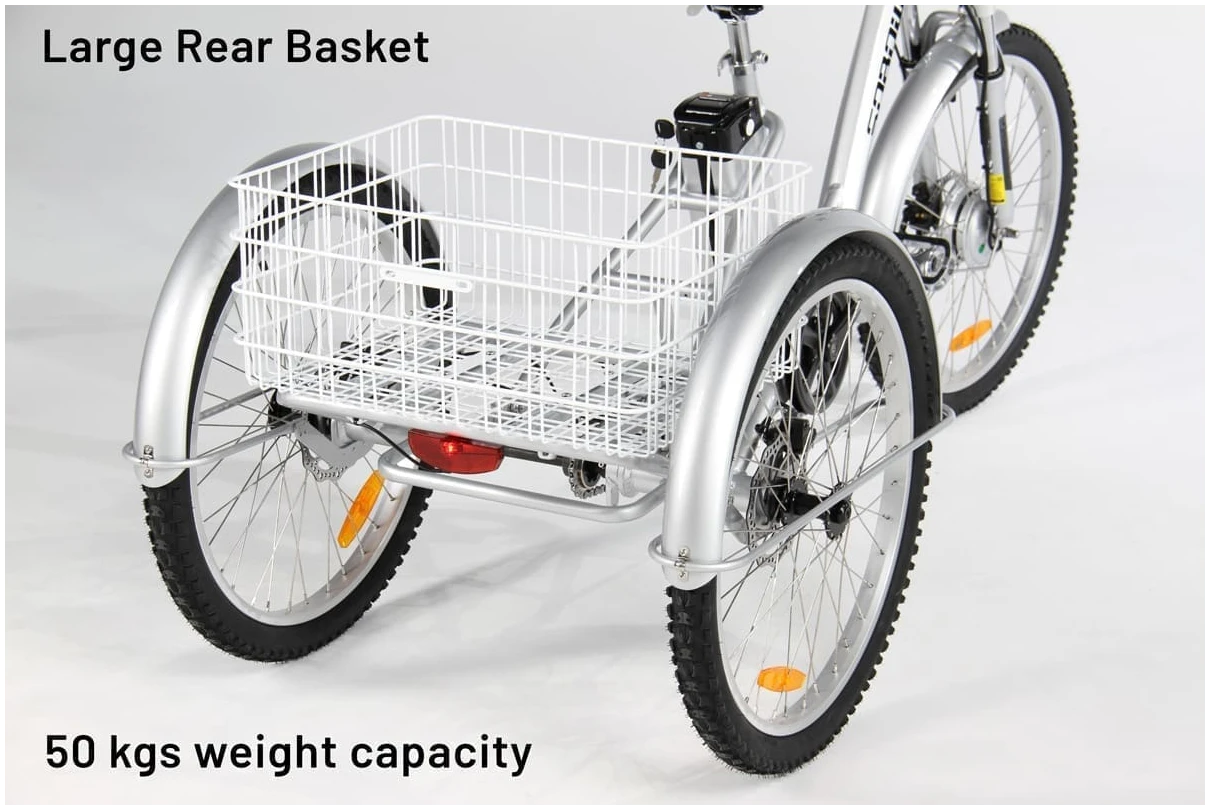

Load Capacity Rear Basket: 50 kgs

Tricycle Dimensions
Overall length: 194 cm front wheel forward
Overall length: 154 cm front wheel 90°
Handlebar width: 63 cm
Overall width: 80 cm
Typical handlebars height: 115 cm
Stepover Height: 42 cm

Basket Dimensions
Rear Basket: 53 cm wide x 43 cm long x 25 cm deep
Front Basket: 35 cm wide x 30 cm long x 25 cm deep
Basket Weight Capacity: Front 10 kgs, Rear 50 kgs


Nett Total: 35 kg (Assembled and ready to ride with all accessories fitted)
Gross Total: 48 kg (In the boxes)

Box 1 Dimensions: 126 cm x 26 cm x 73 cm (L x W x H), Weight: 23 kgs
Box 2 Dimensions: 87 cm x 60 cm x 71 cm (L x W x H), Weight: 25 kgs

Cubic Dimensions for shipping: 0.61 m3 x 250 (standard cubic conversion) = 153.0 kg volume weight

Delivery Options
Click & Collect Boxed from Varsity Lakes QLD
Click & Collect Assembled & Ready to Ride from Varsity Lakes QLD
Express Courier Delivery Boxed throughout Australia

approx. 45-60 minutes with supplied tool kit

Gender and age
Unisex, Ages >12
Lowest seat to pedal height is 68 cm


All Trike Bikes manufactured by Sobowo carry the following warranties…

  • Frame – 2 years
  • Motor – 18 Months
  • Electrics – 1 year
