Is This the Right Tricycle for You?
A premium semi-recumbent electric tricycle with a Bafang 150 Nm mid-drive motor, differential, three-wheel hydraulic braking and a comfort-focused riding position.
This tricycle is generally best suited to riders between 150–195 cm (4’11″–6’5″) tall.
A strong choice for:
- Riders wanting the stability of three wheels
- Riders wanting electric assistance to reduce effort
- Shopping, recreation or everyday transport
- Customers who value Australian support
Compare another model if:
- The listed rider dimensions do not suit you
- You need a substantially different cargo or terrain capability
- You prefer a non-electric tricycle
Unsure? Call 07 5522 0583 before ordering so we can check rider fit and intended use.
Why Choose the Trike Bike CHILL Semi-Recumbent Electric Tricycle?
The most important benefits are visible here; detailed reference information follows below.
150 Nm mid-drive
Strong low-speed assistance through the drivetrain.
Semi-recumbent comfort
Feet-forward position and supportive seating reduce load on hands and wrists.
Differential drive
Supports smoother rear-wheel behaviour through turns.
Three-wheel hydraulic braking
Hydraulic discs are fitted to all three wheels.
Samsung-cell battery
20Ah / 960Wh removable battery with listed UL 2271 certification.
Australian support
Workshop, parts and technical assistance are available.
Safety, Visibility and Ownership Support
The three-wheel layout supports the tricycle when stationary. Correct assembly, suitable route choice, secure loading, regular maintenance and progressive rider practice remain essential.
Use only the compatible supplied charging equipment, follow the battery manual and keep the electrical system in its compliant road configuration.
Support after your purchase
- Adult-tricycle specialists since 2007
- Workshop support from Varsity Lakes, Queensland
- Replacement parts and technical assistance available
- Australia-wide telephone support
- Product-specific warranty assistance
Comfort, Rider Fit and Key Measurements
Rider height alone does not guarantee fit. Inside-leg reach, flexibility, seat position, controls and the intended route should also be checked.
Complete Product Information
Open any section below for detailed specifications, dimensions, delivery information and ownership resources.
Motor, Assistance and Performance
- Motor
- Bafang M430 mid-drive motor
- System voltage
- 48V
- Maximum continuous assistance
- 250W in the Australian road-use configuration
- Short-duration peak output
- Up to 500W for approximately five seconds during heavy acceleration at low speed
- Motor torque
- 150 Nm
- Pedal-assist levels
-
- Level 0: pedal power only
- Level 1: light assistance
- Level 2: moderate assistance
- Level 3: strong assistance
- Level 4: high assistance
- Level 5: maximum assistance
- Walk assistance
- Yes, up to 6 km/h
- Pedal sensor
- Composite torque and cadence sensing
- Differential
- Yes – fitted to the rear wheel
- Maximum assisted speed
- 25 km/h locked
- Acceleration
- High-torque mid-drive assistance designed to provide controlled starting and hill-start support
- Riding position
- Semi-recumbent, upright upper body with a feet-forward pedalling position
Battery and Charging
- Battery type
- Rechargeable lithium battery using Samsung 21700 cells
- Battery voltage
- 48V
- Battery energy
- 20Ah | 960Wh
- Battery certification
- UL 2271 listed battery system
- Battery location
- Frame-mounted beneath the seat
- Battery lock
- Key-lockable and removable
- Battery expansion
- Optional second-battery and long-range battery configurations are available
- Battery-management protection
-
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Thermal protection
- Cell balancing
- Current-overload protection
- Automatic charging cut-off
- Throttle only range estimate
- Approximately 80–100+ km depending on assistance level and riding conditions
- Charger
- 48V 2A smart charger with Australian three-pin mains plug
- Charger input
- 100–240V AC
- Typical charge time
- Approximately 8–10 hours
- Charger indicator
- Red indicates charging; green indicates charging is complete
- Charging temperature
- 0°C to 45°C
- Battery storage temperature
- -10°C to 60°C
Battery Range Calculator
Trike Bike CHILL Charging Cost Calculator
Estimate how much it costs to recharge the Trike Bike CHILL and how far you may travel based on your riding style.
Please note: These figures are estimates only. Actual range will vary depending on rider weight, terrain, wind, tyre pressure, hills, stop-start riding, temperature and how much pedalling assistance is used.
Dimensions and Rider Sizing
- Overall dimensions
- 217 × 80 × 133 cm (length × width × height)
- Wheelbase
- 140 cm
- Net weight
- Approximately 55 kg
- Recommended rider height
- Approximately 150–195 cm (4’11″–6’5″)
- Maximum combined rider and cargo load
- 200kg. 150kg rider, 50kg cargo
- Ground clearance
- 15 cm
- Turning radius
- Approximately 180 cm
- Step-over height
- Approximately 37 cm
- Seat width
- 42 cm
- Seat height
- Approximately 60–75 cm from the ground, depending on the seat-rail position
- Seat adjustment
- Quick-release diagonal sliding system: forward and lower for shorter riders; rearward and higher for taller riders
- Backrest adjustment
- Adjustable recline angle
- Handlebar width
- 64 cm
- Handlebar adjustment
- Adjustable height and reach
Frame, Suspension and Rider Comfort
- Frame material
- 6061-T6 heat-treated aluminium alloy
- Frame style
- Low-centre-of-gravity, extra-low step-through semi-recumbent frame
- Finish
- UV-resistant 2-pak paint coating
- Cable routing
- Electrical cabling routed internally where applicable
- Hardware
- Stainless-steel fasteners where specified
- Rear suspension
- Single hydraulic suspension unit
- Seat
- 42 cm extra-wide padded seat
- Backrest
- Ventilated supportive backrest with adjustable angle
- Handlebars
- Adjustable ergonomic swept-back design
- Grips
- Soft-touch faux leather
- Comfort system
- Suspension, padded seating, supportive backrest and multiple adjustable contact points help reduce vibration and rider fatigue
Gearing, Brakes, Wheels and Tyres
- Gear system
- Shimano Nexus 8-speed internal hub
- Gear selector
- Handlebar-mounted twist-grip selector
- Lower gears
- Gears 1–3 for starting, slower riding and hills
- Middle gears
- Gears 4–6 for general riding and flatter terrain
- Higher gears
- Gears 7–8 for comfortable cruising on suitable flat terrain
- Chain
- KMC heavy-duty rust-resistant chain
- Differential
- Yes – Fitted to the rear axle
- Crankset
- Aluminium
- Bottom bracket
- Sealed-bearing bottom bracket
- Chain guard
- Included
- Pedals
- Alloy anti-slip pedals
- Brake type
- Hydraulic disc brakes operating on all three wheels
- Brake rotors
- 180 mm front and rear
- Parking brake
- Mechanical lever-lock parking function
- Motor cut-off
- Brake-lever motor cut-off
- Wheel size
- 20 × 2.125-inch front wheel and two 20 × 2.125-inch rear wheels
- Tyres
- Kenda tyres with puncture-resistant belt and reflective strip
- Rims
- Five-spoke cast aluminium
- Valves
- Schrader
Display, Controls, Lighting and Electrical Protection

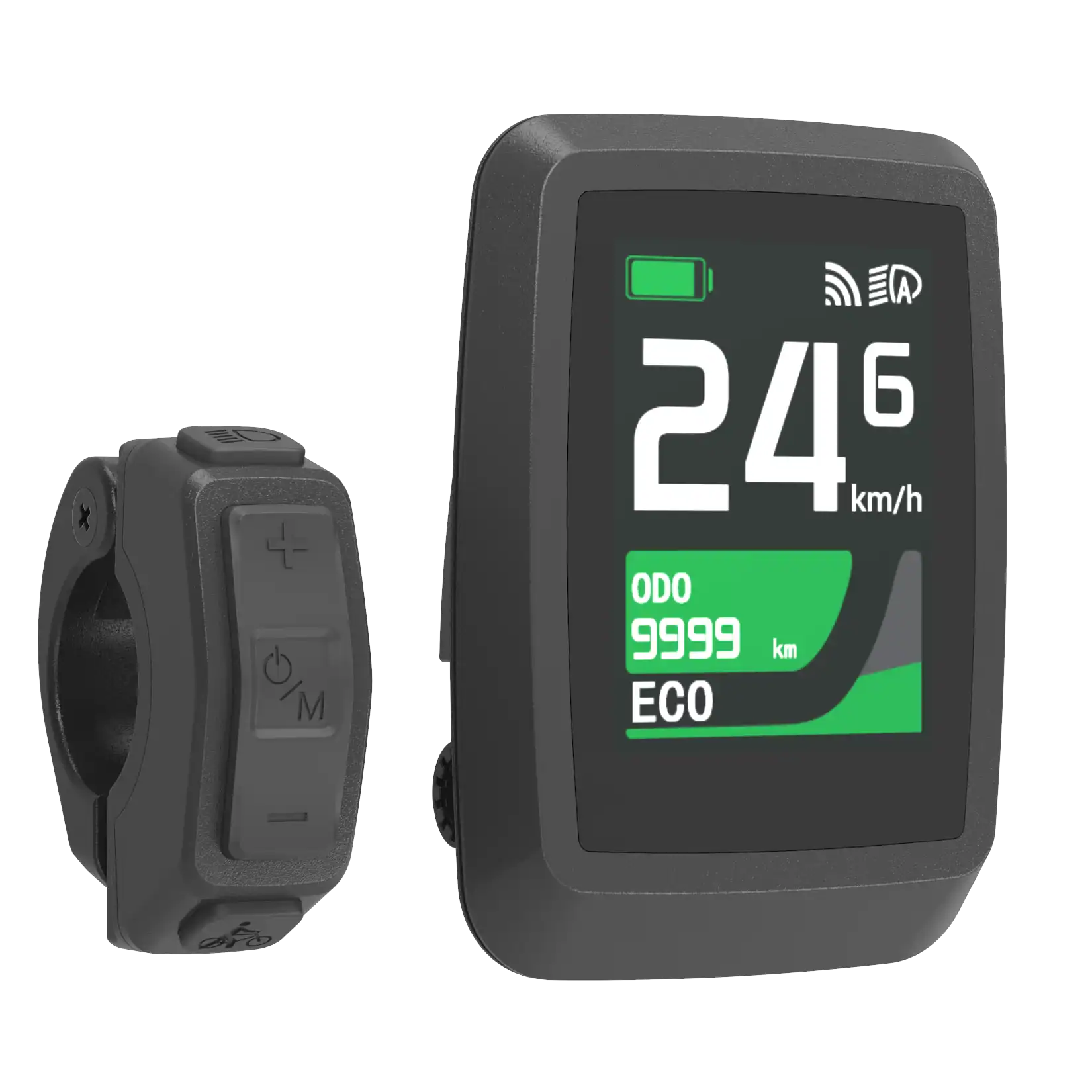

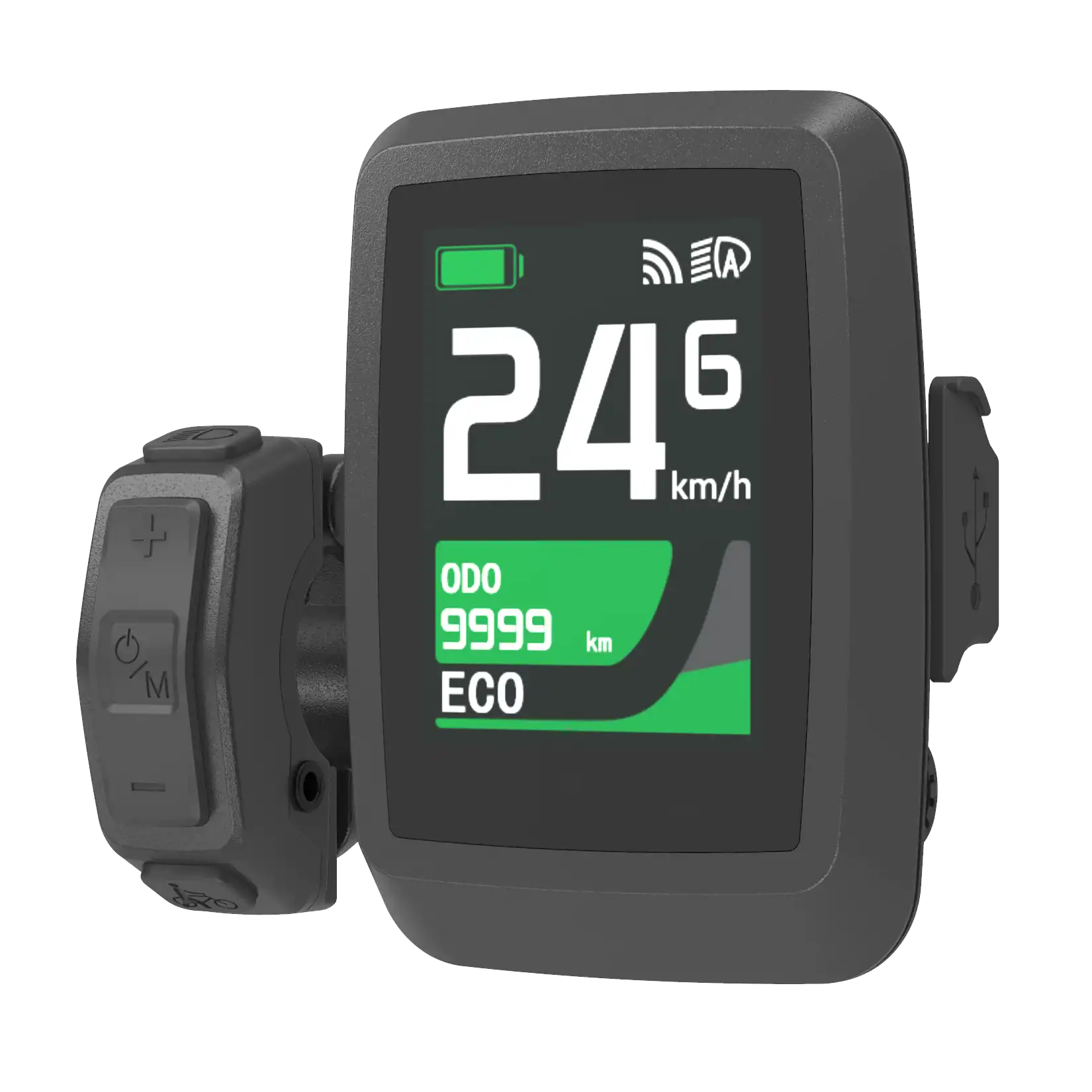

- Display
- Bafang C010 colour OLED/TFT display
- Screen size
- 4 inches
- Speed information
- Current, average and maximum speed
- Trip information
- Trip distance and total odometer distance
- Battery information
- Battery charge-level display
- Motor information
- Motor power-output display
- Indicator information
- Turn-indicator status displayed where applicable
- Error diagnostics
- On-screen system error codes
- USB output
- Yes
- Backlight
- Adjustable, with ambient-light sensing
- Control pad
- IPX6-rated multi-button keypad
- System communication
- UART/CAN communication as configured
- Front light
- 40-lux LED light powered by the tricycle battery
- Rear light
- LED rear light with brake-light function
- Turn indicators
- Front and rear stalk indicators
- Reflectors
- Wheel, pedal, front and rear reflectors
- Motor water and dust resistance
- IPX6 component rating
- Battery water and dust resistance
- IP67 component rating
- Display and keypad resistance
- IPX6 component rating
Cargo Capacity and Optional Accessories
- Rear cargo platform
- Integrated platform with tie-down points
- Rear basket
- Removable basket with carrying handles
- Maximum rack and basket cargo
- Up to 50 kg, subject to the 200 kg combined rider-and-cargo limit
- Towing capacity
- Up to 50 kg with a suitable correctly fitted trailer, subject to operating conditions and total-load limits
- Optional second battery
- Available
- Optional long-range battery
- Available
- Optional mirror kit
- Available
- Optional weather cover
- Available
- Optional basket bag
- Available
- Optional security lock
- Available
What Is Included
- Trike Bike CHILL semi-recumbent electric tricycle
- Removable 960Wh rechargeable battery
- Compatible 48V smart charger
- Removable rear basket
- Integrated front and rear lighting
- Reflectors and fitted safety equipment
- Assembly tools are supplied
- Owner and assembly information
Optional accessories and upgraded battery configurations are not included unless specifically selected with the order.
CHILL vs Other Semi-Recumbent Electric Tricycles
| Design Area | Trike Bike CHILL | Typical Other AU Recumbent / Semi-Recumbent E-Trikes* | CHILL Advantage |
|---|---|---|---|
| Motor & Torque | Ananda mid-drive, ~130 Nm torque, tuned to 25 km/h assist for road use. | 250 W hub or mid-drive systems, or 500 W rear hub motors. | Stronger hill-climbing and smoother low-speed control, especially with heavier riders or cargo. |
| Step-Over Height | Ultra-low step-over (~37 cm). | Often 45–50 cm or higher step-through. | Much easier to mount/dismount for seniors and riders with mobility or balance issues. |
| Braking System | Hydraulic disc brakes on all 3 wheels. | Mix of hydraulic (front/rear) or mechanical disc setups; some models have only 2 wheel brakes, & mechanical only. | Maximum stopping power with less hand force; better under load and downhill. |
| Rear Wheels | Cast alloy rear wheels (no spokes). | Conventional spoked rear wheels. | Zero spoke maintenance and better long-term alignment under heavy loads. |
| Frame Design | Non-folding, reinforced 6061 alloy frame, tuned for stiffness and longevity. | Mix of shorter frames or folding/bolt-together designs, more flex over time. | More stable feel, fewer creaks/twists and better handling with payload. |
| Seating & Ergonomics | Semi-recumbent position, large seat with high backrest, unique diagonal sliding adjustment. | Recumbent/semi-recumbent seats with backrests but more limited adjustments, often much higher frame. | Better fit for a wider range of adult riders; better comfort on long rides. Widest seat available for extra comfort. |
| Rider & Cargo Capacity | Rated up to ~150 kg combined rider + cargo. | Commonly 120–130 kg total, sometimes higher on heavy fat-tyre models. | Higher practical load rating than many mobility-focused semi-recumbent trikes. |
| Battery & Safety | 48 V 14 Ah (672 Wh) Samsung pack, UL2271 listed, documented thermal and BMS protections. | Some models quote UL standards; many lower-cost imports give no clear certification info. | Clear, documented battery safety that you can give to insurers, OTs and regulators. |
| Weight vs Strength | Approx. 55 kg complete – heavier than budget models but with cast wheels, mid-drive and reinforced frame. | Lighter frames (mid-40 kg range) but with spoked wheels and much smaller motors. | Bias toward strength, stability and low maintenance rather than chasing the lowest weight. |
| Compliance Envelope | Configured within 25 km/h assist envelope used for road-legal e-bikes in AU, on a tricycle platform. | Most are either 250 W / 25 km/h or 500 W hub trikes; many Australian sellers are vague on how they are configured. | Easy story: “behaves like a compliant e-bike” while benefiting from a stronger trike-specific chassis. |
| Local Support & Warranty | 5-year frame, 2-year battery & electrics, all parts carried by Trike Bike Australia. | Warranty varies by importer/retailer; often 1–2 years with less emphasis on long-term frame coverage. | Cleaner long-term ownership story, especially for NDIS/My Aged Care and regional customers. |
Delivery, Shipping and Assembly
- Factory assembly level
- Approximately 90% pre-assembled
- Typical final assembly time
- Approximately 30–45 minutes for a competent person familiar with bicycle assembly
- Tools
- Basic assembly tools included
- Manual
- Included or available online
- Video guidance
- Available online
- Approximate carton size
- 163 × 82 × 85 cm (length × width × height)
- Approximate shipping weight
- 60 kg
The CHILL is supplied partially assembled unless Trike Bike Australia workshop assembly is selected. Lithium-battery shipments may require specialist dangerous-goods handling.
Warranty, Servicing and Spare Parts
- Frame warranty
- 5 years
- Motor warranty
- 2 years
- Battery warranty
- 2 years
- Electrical-component warranty
- 2 years
- Other-component warranty
- 12 months
- Wiring
- Modular plug-and-play connections where applicable
- Battery replacement
- User-removable battery
- Parts availability
- Parts and technical support are available through Trike Bike Australia on the Gold Coast
- Routine checks
- Tyre pressure and condition, chain lubrication, brakes, fasteners, electrical connections and battery condition
Warranty coverage does not replace routine adjustment, servicing or wear-item maintenance. Warranty periods and exclusions are subject to the current product-specific warranty terms supplied with the tricycle.
Frequently Asked Questions
Who is the CHILL designed for?
It is designed for adults seeking three-wheel stability, a supportive semi-recumbent seating position, low step-over access and electric assistance for recreation, mobility, shopping and longer rides.
Does a tricycle ride like a normal bicycle?
No. It does not need balancing when stationary, but steering and cornering feel different. Practise progressively in a quiet open area before riding near traffic, pedestrians or obstacles.
How do I confirm the correct rider fit?
Compare all listed dimensions rather than height alone. Call 07 5522 0583 with the rider’s height, inside-leg measurement, flexibility, intended use and terrain if you would like assistance.
Is the stated electric range guaranteed?
No. Range is an estimate and changes substantially with load, hills, wind, temperature, tyre pressure, speed and assistance level.
Can Trike Bike Australia support the product after purchase?
Yes. Workshop, spare-parts, telephone and technical support are available from Trike Bike Australia’s adult-tricycle specialist team.
Videos, Manuals and Riding Resources
Open the Trike Bike Australia video gallery
Open assembly instructions and available manuals
Use only the manual, assembly video and operating information applicable to the exact CHILL model and production batch supplied.
Need Help Choosing the Correct Tricycle?
Speak with an adult-tricycle specialist before ordering. We can help compare rider fit, electric assistance, cargo needs, terrain and delivery options.
